All Aluminum Honeycomb Wall Sheet With Lightweight High Strength Good Rigidity

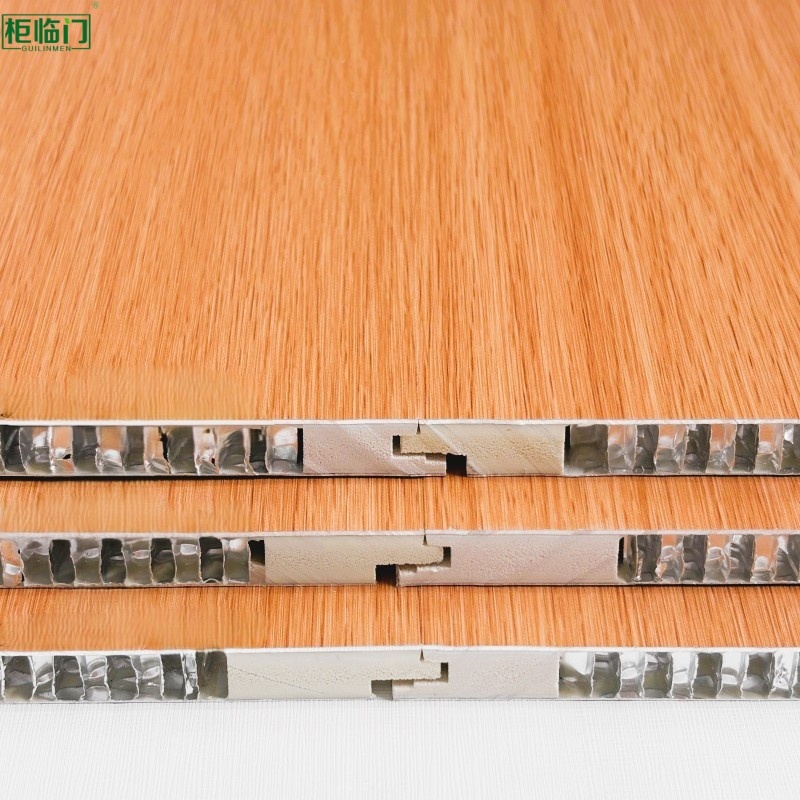

Aluminum honeycomb wall panels are advanced sandwich panels made by bonding two layers of aluminum face sheets to a hexagonally structured aluminum honeycomb core.
Key Advantages
1.Unmatched Strength-to-Weight Ratio: Provides high flexural rigidity and impact resistance while remaining extremely lightweight.
2. Fire Safety: Highly rated for fire resistance (often Class A2-s1, d0) and does not contain combustible thermoplastic fillers.
3. Weather & Corrosion Resistance: Often utilizes marine-grade alloys paired with durable PVDF/FEVE coatings, making them ideal for exterior facades.
4. Superior Flatness: Maintains a perfectly flat aesthetic, even when utilized in large-format panels.
5. Eco-Friendly: Fully recyclable and sustainable.
Common Applications
· Architecture: Used for exterior cladding, facades, canopies, roofings, and interior partitions.
· Transportation & Marine: Found in ship bulkheads, trains, aircraft interiors, and heavy-duty vehicle manufacturing.
· Industrial & Engineering: Utilized for clean rooms, elevator cladding, and specialized furniture.
Aluminum Honeycomb Core
Aluminum honeycomb core is made of multiple layers of aluminum foils, processed by gluing, pressing and expanding. It has sharp and clear hole surface, which is suitable for splicing high-quality core-to-core panels and other purposes.
| Characters of Honeycomb Aluminum |
|
| Parameter |
Specification |
| Aluminum Alloy |
AA3003 H18, AA5052 H18 |
| Total Panel Thickness |
4mm,8mm,10mm,15mm,25mm,Max 500mm |
| Aluminum Skin Thickness |
0.5mm,0.8mm,1mm,1.5mm,Max 3mm |
| Coating |
Fluorocarbon coating, Flim, Spray coating, Melamine paper PP. Flame-retardant sheet, PVDF, PE, Anodized, MillFinished, Embossed, Granite etc |
| Length |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Width |
1000mm, 1220mm, 125Omm, 1500mm, Max 2200mm |
| Honeycomb Core Foil Thickness |
0. 02mm, 0. 04mm, 0. 05mm, 0. 06mm, 0. 08mm Max 0. 1mm |
| Honeycomb Core Cell Size |
licro-ApertureHoneycomb:1/10" (2. 6mm), 1/8" (3.17mm),1/6" (3. 47mm), 1/5" (5.2mm), Regular Honeycomb:1/4" (6. 35mm),1/3° (8. 47mm),3/8" (9.53mm),1/2" (12.7mm),3/4" (19.05mm),4/5" (20.32mm),1*(25.9m) |
| Honeycomb Core Cell Length |
Micro-Aperture Honeycomb:1. 5mm, 1. 83mm, 2mm, 2.5mm, 3mm,
RegularHoneycomb: 4mm, 5mm, 6mm, 7. 5mm, 1Omm, 12mm, 15mm |
| Edge |
Close Edge, Open Edge |

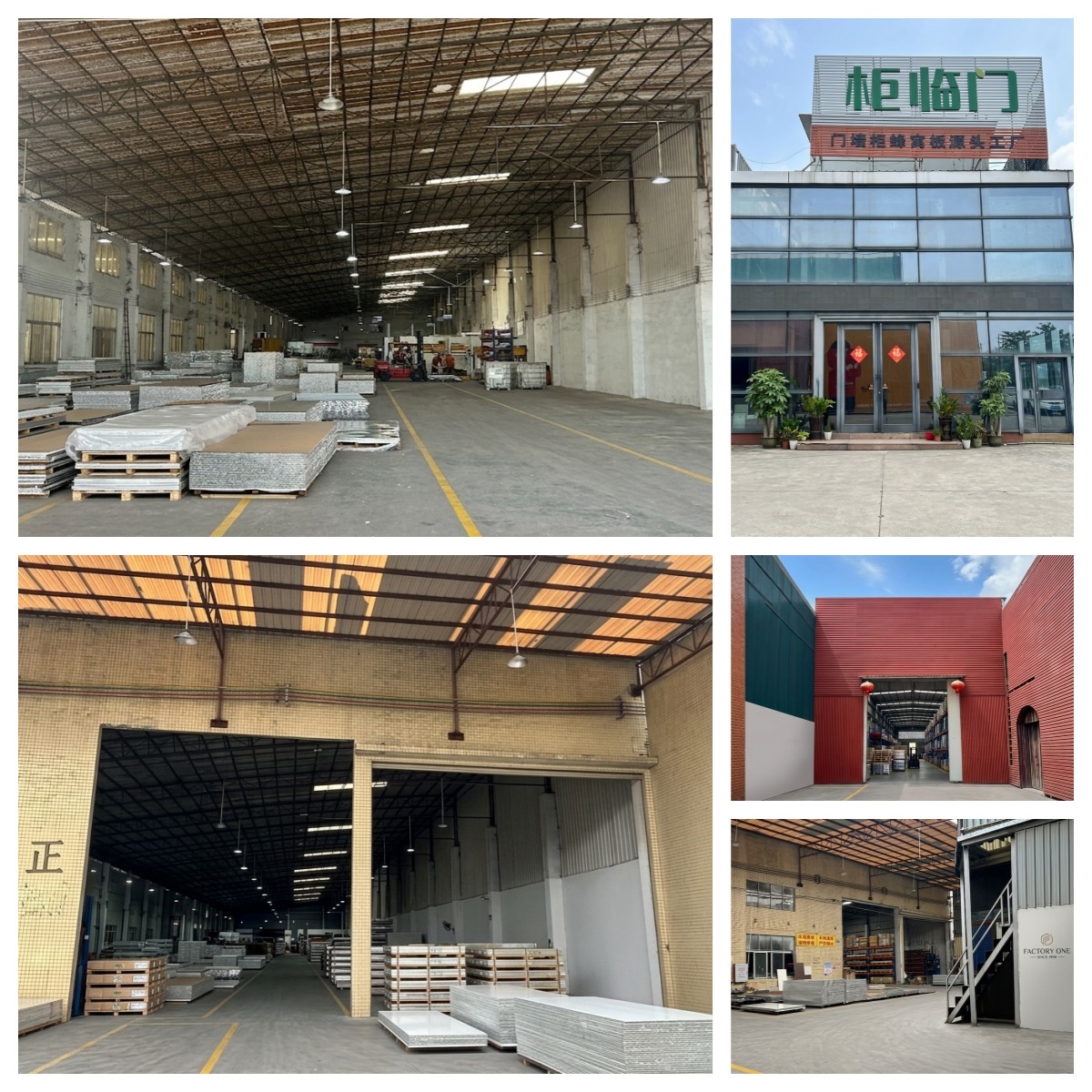

Overview of Our Factory
FAQ
Q1: What specifications are available for Aluminum Honeycomb Panels?
A: We offer a wide range of customizable specifications, including panel thickness, aluminum skin thickness, honeycomb core, panel size, alloy grade and surface finish. Standard and customized specifications are available according to your project or wholesale requirements.
Q2: Are Aluminum Honeycomb Panels suitable for outdoor applications?
A: Yes. Our aluminum honeycomb panels can be designed for both indoor and outdoor applications. With suitable aluminum materials and surface treatments, they offer excellent lightweight strength, corrosion resistance and weather resistance for facades, walls, ceilings and other architectural applications.
Q3: What surface finishes and colors can you provide?
A: We provide various surface finishes, including solid colors, metallic, wood grain, marble, stone, brushed and other customized finishes. Custom colors and finishes can also be developed according to your brand or project requirements.
Q4: What is your payment term?
A: We accept the payment terms: T/T, L/C, FOB, CIF.
Q5: What are the transportation methods?
A: Ocean Shipping and railway transportation. Feel free to select the packaging and shipping options that best meet your specific requirements, ensuring a secure and efficient delivery of our aluminum plates.
Q6: Can you provide certificates and test reports for international projects?
A: Yes. We can provide relevant technical documents, material information, certificates and test reports according to product specifications and project requirements. If your market or project has specific standards, please contact us so our technical team can confirm the applicable documentation.
Looking for a reliable Aluminum Honeycomb Panel supplier?
Contact Guilinmen for OEM / ODM solutions, wholesale pricing and customized samples.
