Sustainability Aluminum Honeycomb Wall Panel 100% recyclable
Aerospace-grade aluminum honeycomb wall panel redefines modern wall decoration. Lightweight, high rigidity, A1 fire resistant, waterproof and sound insulating suitable for different usages. Free of harmful chemicals, resistant to humidity, salt spray and pests. Custom curved & perforated panels available to create seamless high-end wall aesthetics for residential and commercial projects.
Key Advantages
✅ Zero formaldehyde, eco-friendly & safe for families
✅ Fully waterproof, mold-proof, perfect for bathroom/balcony walls
✅ Anti-corrosion & termite-proof, ideal for coastal areas
✅ Excellent sound insulation, quiet interior space
✅ Ultra-flat large panels, fewer splicing seams

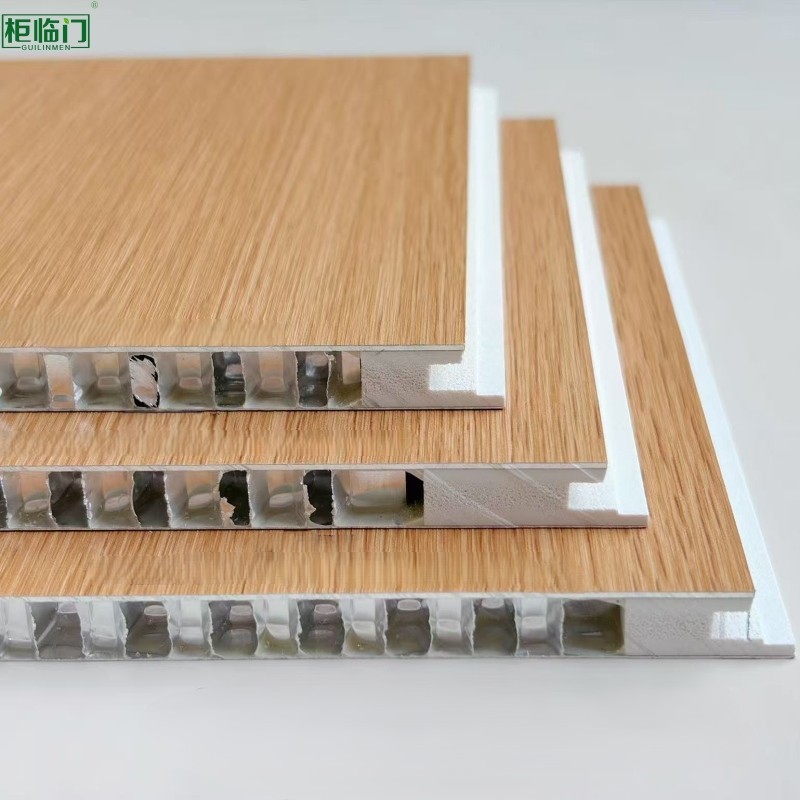

✅ Custom wood grain, stone & metallic finishes for all styles
Common Applications

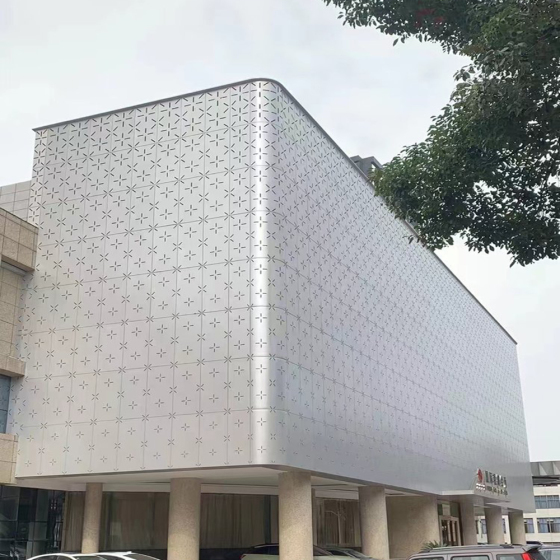

1. Architectural Exteriors: High-rise facades, curtain walls, rainscreen systems, airport terminals, metro stations
2. Interiors: Lobbies, partitions, ceilings, elevator cabs, cleanrooms
3. Transportation: Marine interiors, metro coach panels, vehicle bodywork
4. Specialty: Exhibition stands, signage, furniture, solid surfacing backing for stone/marble

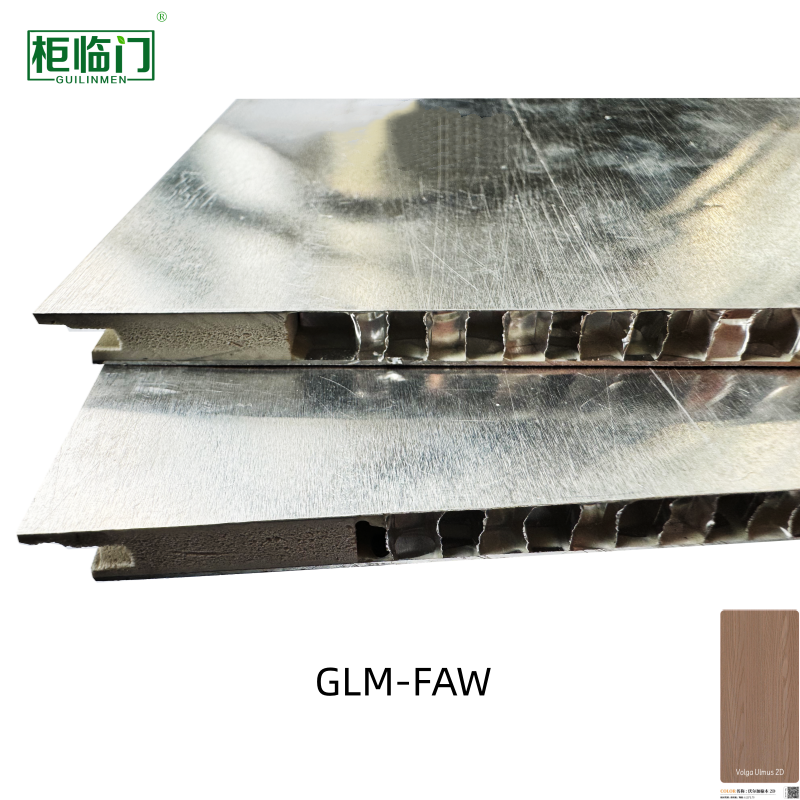

Aluminum Honeycomb Core
Aluminum honeycomb core is made of multiple layers of aluminum foils, processed by gluing, pressing and expanding. It has sharp and clear hole surface, which is suitable for splicing high-quality core-to-core panels and other purposes.
| Characters of Honeycomb Aluminum |
|
| Parameter |
Specification |
| Aluminum Alloy |
AA3003 H18, AA5052 H18 |
| Total Panel Thickness |
4mm,8mm,10mm,15mm,25mm,Max 500mm |
| Aluminum Skin Thickness |
0.5mm,0.8mm,1mm,1.5mm,Max 3mm |
| Coating |
Fluorocarbon coating, Flim, Spray coating, Melamine paper PP. Flame-retardant sheet, PVDF, PE, Anodized, MillFinished, Embossed, Granite etc |
| Length |
2440mm, 3000mm, 3500mm, 5800mm, Max 10000mm |
| Width |
1000mm, 1220mm, 125Omm, 1500mm, Max 2200mm |
| Honeycomb Core Foil Thickness |
0. 02mm, 0. 04mm, 0. 05mm, 0. 06mm, 0. 08mm Max 0. 1mm |
| Honeycomb Core Cell Size |
licro-ApertureHoneycomb:1/10" (2. 6mm), 1/8" (3.17mm),1/6" (3. 47mm), 1/5" (5.2mm), Regular Honeycomb:1/4" (6. 35mm),1/3° (8. 47mm),3/8" (9.53mm),1/2" (12.7mm),3/4" (19.05mm),4/5" (20.32mm),1*(25.9m) |
| Honeycomb Core Cell Length |
Micro-Aperture Honeycomb:1. 5mm, 1. 83mm, 2mm, 2.5mm, 3mm,
RegularHoneycomb: 4mm, 5mm, 6mm, 7. 5mm, 1Omm, 12mm, 15mm |
| Edge |
Close Edge, Open Edge |
Overview of Our Factory
FAQ
Q1: What surface finishes and colors can you provide?
A: We provide various surface finishes, including solid colors, metallic, wood grain, marble, stone, brushed and other customized finishes. Custom colors and finishes can also be developed according to your brand or project requirements.
Q2: Can you provide certificates and test reports for international projects?
A: Yes. We can provide relevant technical documents, material information, certificates and test reports according to product specifications and project requirements. If your market or project has specific standards, please contact us so our technical team can confirm the applicable documentation.
Q3: Do you provide technical support for installation and fabrication?
A: Yes. We can provide technical support including product specifications, fabrication recommendations, installation guidance, CAD drawings and other project-related information. Our team can also work with distributors, contractors and project teams to develop suitable panel solutions.
Q4: What is your payment term?
A: We accept the payment terms: T/T, L/C, FOB, CIF.
Q5: Can I get a sample?
A: Yes, we can provide a free standard-size sample and the color board, but the delivery cost should be paid by you. For customized or large-size samples, you should bear both the sample cost and delivery cost
Q6: How long does it take for an order to be shipped?
A: It will take approximately 10-15 days.
Looking for a reliable Aluminum Honeycomb Panel supplier?
Contact Guilinmen for OEM / ODM solutions, wholesale pricing and customized samples.
